Jigger
Fabric dyeing machines can come in all shapes and sizes, but
A Jigger is typically an open-framed machine with a rotating drum that holds the fabric to be dyed. Jigger is the standard and oldest way to dye cotton and cotton blend fabric.
The jigger machine has been used for a long time to treat small to medium size lots of woven fabric with an open-width exhaust dyeing process. Dye jiggers are available in Two variants 1st Jigger is an Open type with the following options:
✅ Fully S.S. construction or Mounted on C.I. Walls.
✅ With a water re-circulation system and temperature controllers.
✅ A.C. Motor drive or Inverter Control Drive
✅ Semi Automatic or Fully Automatic
✅ S.S. Cladded Batch Rollers of Ebonite coated Batch Rollers

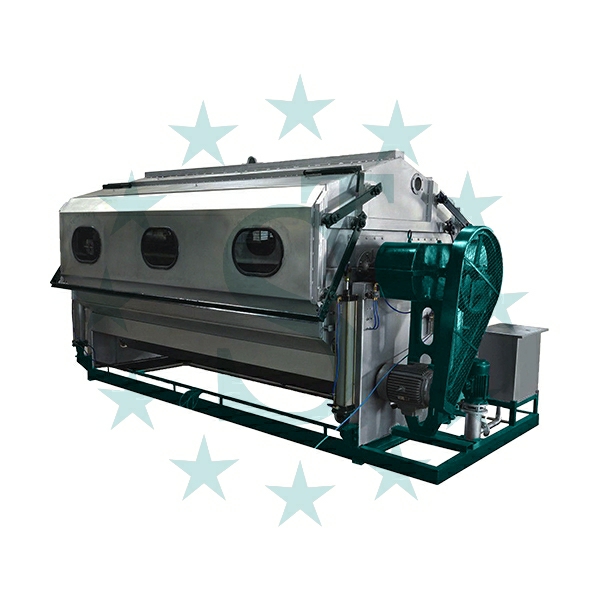

2nd one is a Close type with the following advancement:
✅ Gear Box Type Semi Automatic Maxi Jigger Machine
✅ S.S. Spring Type Floating Device
✅ Roof Heating is Provided to Prevent Dropping on Fabrics
✅ Direct & Indirect Heating with Temperature Controller
✅ Auto R/F System with Cycle Contrail with the help of PLC
⭕ Pneumatic Operated Auto Drain (Optional)
⭕ A Direct Mounted Reduction Gear Box (Optional)
🔸 Technical Specification
✅ The Machines are available from 1250mm to 3400mm in width
✅ Roll Center: 25″, 31″, 36″, 41″
✅ Complete Stainless Steel Body with M.S. Base Frame
✅ Capacity: 225 Kg., 350 Kg., 500 Kg., 750Kg., 1000Kg., 1500Kg.(250 Gsm)
✅ Complete Stainless Steel Body.
✅ Heavy-duty brake drum.
✅ Heavy duty differential Gear unit.
✅ A.C. Frequency Drive.
✅ Stainless Steel Cladded Main Roll
✅ Circulation System with 2.0 H.P.
In conclusion, This is best for small batches to mass dyeing lots with the durable built of Stainless Steel it gives durability instead of the lower model. The water re-circulation system makes accurate dyeing results while keeping the fabric clean. Heavy-duty brake drums give precise tension to the cloth with the help of an A.C. Frequency drive.
In short, It is the basic necessity for a small dyeing house to a large dyeing industry with less space and higher capacity. It is the Best Fabric Dyeing machine for small to medium size cotton dyeing units.
₹525,000.00
Compare
Jigger
Fabric dyeing machines can come in all shapes and sizes, but
A Jigger is typically an open-framed machine with a rotating drum that holds the fabric to be dyed. Jigger is a standard and oldest way to dye cotton and cotton blend fabric.
Jigger machine has been used for a long time to treat small to medium size lots of woven fabric with an open-width exhaust dyeing process. Dye jiggers are available in Two variants 1st Jigger is an Open type with the following options:
✅ Fully S.S. construction or Mounted on C.I. Walls.
✅ With a water re-circulation system and temperature controllers.
✅ A.C. Motor drive or Inverter Control Drive
✅ Semi Automatic or Fully Automatic
✅ S.S. Cladded Batch Rollers of Ebonite coated Batch Rollers
2nd Jigger is a Close type with the following advancement:
✅ Gear Box Type Semi Automatic Maxi Jigger Machine
✅ S.S. Spring Type Floating Device
✅ Roof Heating Provided to Prevent Dropping on Fabrics
✅ Direct & Indirect Heating with Temperature Controller
✅ Auto R/F System with Cycle Contrail with the help of PLC
⭕ Pneumatic Operated Auto Drain (Optional)
⭕ The Direct Mounted Reduction Gear Box (Optional)
🔶 Technical Specification
✅ The Machines are available from 1250mm to 3400mm in width
✅ Roll Center: 25″, 31″, 36″, 41″
✅ Complete Stainless Steel Body with M.S. Base Frame
✅ Capacity: 225 Kg., 350 Kg., 500 Kg., 750Kg., 1000Kg., 1500Kg.(250 Gsm)
✅ Complete Stainless Steel Body.
✅ Heavy duty brake drum.
✅ Heavy duty differential Gear unit.
✅ A.C. Frequency Drive.
✅ Stainless Steel Cladded Main Roll
✅ Circulation System with 2.0 H.P.
🔶 Payment, Taxes and Delivery
Payment: Before dispatch of machinery, 40% advance and a balance against the proforma invoice.
Delivery: Delivery of machine ideally comes within 4 to 6 weeks.
Freight: Will be paid by the customer.
Sales Tax: GST 18% (Domestic Orders) Or Vat 4% +1% No CST against form “H”( export orders).
Installation: Will be charged extra per machine over and above the price.
1. Select Product
Choose the required specification & submit the details.
2. Get Offer
Get a Detailed Offer.
3. Pay The Advance
Pay the advance amount as per agreed terms.
4. Product Under Construction
Product goes under Construction according agreed time.
5. Pay The Rest Amount
Pay the balance amount as your machine get ready to dispatch.
6. Shipment Initiated
Shipment option available through Manufacturer.
7. Installation
Finally, the product will be installed at your plant.
Jigger | Fabric dyeing machine | 225 to 1500 Kgs. | Best buy
Jigger has been used for a long time to treat medium size lots of woven with open width exhaust dyeing process.Dye jiggers are available in many variants
Product SKU: D/J-1
Product Brand: Indian
Product Currency: ₹
Product Price: 5,25,000
Price Valid Until: 2023-08-01
Product In-Stock: PreOrder
4.5
| Fabric | Cotton, Cotton Polyester, Wool, Canvas, Silk |
|---|---|
| Machine Width | 1250mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2200mm, 2400mm, 2600mm, 2800mm, 3000mm, 3200mm, 3400mm |
| Type | OPEN, CLOSE |
| Capacity | 250KG, 350 KG, 500 KG, 750 KG, 1000 KG, 1500 KG |
Jigger | Fabric dyeing machine | 225 to 1500 Kgs. | Best buy
Jigger has been used for a long time to treat medium size lots of woven with open width exhaust dyeing process.Dye jiggers are available in many variants
Product SKU: D/J-1
Product Brand: Indian
Product Currency: ₹
Product Price: 5,25,000
Price Valid Until: 2023-08-01
Product In-Stock: PreOrder
4.5
Based on 0 reviews
Be the first to review “Jigger”
-
