Rope Washing Range
Rope Washing Range
Rope Washing Range is a fabric washing machine. Therefore, The Rope Washing Range is for woven fabrics like cotton, cotton/viscose, cotton/polyester or linen and knitted fabrics.
Viscose washed in rope form because of its poor wet strength.
Similarly, Knit fabrics tend to elongate in open form and require many holding gadgets. So, it is washed in rope form to avoid curling and elongation.
The Rope Washing Rang has two open-width compartments/triple drum compartment/cage washer for wetting and swelling dyes as well gum paste, fabric then gathered in a J-scray before going into the winch washing compartments.
The oval-type S.S. winch helps in thrashing the cloth into the S.S. washing tank to remove the gum and excessive colour.
There is a provision for heating the water with steam for faster removal of excessive materials. Long dwell times, controlled temperature and liquor flow to suit individual requirements add high washing efficiency.
Each tank can hold 110 kilos to 200 kilogrammes of cloth, depending on the breadth of the tank. After being washed with a rope opening mechanism, the fabric takes on an open state.
🔶 ADVANTAGES :
✅ Excellent washing efficiency.
✅ Sturdy construction.
✅ Low energy consumption.
✅ Quiet running.
✅ Lowest maintenance effort.
✅ Speed up to 70 Meters / Min.
✅ Easy installation
₹7,500,000.00
Compare

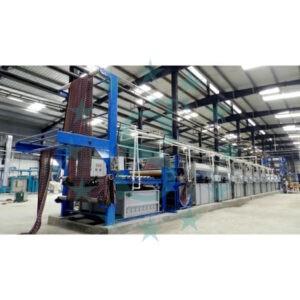

Open Width Cum Rope Washing Range
Rope Washing Range is for fabric washing purposes. Therefore, The Rope Washing Range is for woven fabrics like cotton, cotton/viscose, cotton/polyester or linen and knitted fabrics.
Viscose washed in rope form because of its poor wet strength.
Similarly, Knit fabrics tend to elongate in open form and require many holding gadgets. So, it is washed in rope form to avoid curling and elongation.
The Rope Washing Rang has two open-width compartments/triple drum compartment/cage washer for wetting and swelling dyes as well gum paste, fabric then gathered in a J-scray before going into the winch washing compartments.
The oval-type S.S. winch helps in thrashing the cloth into the S.S. washing tank to remove the gum and excessive colour.
There is a provision for heating the water with steam for faster removal of excessive materials. Long dwell times, controlled temperature and liquor flow to suit individual requirements add high washing efficiency.
Each tank can hold 110 kilos to 200 kilogrammes of cloth, depending on the breadth of the tank. After being washed with a rope opening mechanism, the fabric takes on an open state.
🔶 ADVANTAGES :
✅ Excellent washing efficiency.
✅ Sturdy construction.
✅ Low energy consumption.
✅ Quiet running.
✅ Lowest maintenance effort.
✅ Speed up to 70 Meters / Min.
✅ Easy installation
🔸 Payment, Taxes and Delivery
Payment: Before dispatch of machinery, 40% advance and a balance against the proforma invoice.
Delivery: Delivery of machine ideally comes within 4 to 6 weeks.
Freight: Will be paid by the customer.
Sales Tax: GST 18% (Domestic Orders) Or Vat 4% +1% No CST against form “H”( export orders).
Installation: Will be charged extra per machine over and above the price.
1. Select Product
Choose the required specification & submit the details.
2. Get Offer
Get a Detailed Offer.
3. Pay The Advance
Pay the advance amount as per agreed terms.
4. Product Under Construction
Product goes under Construction according agreed time.
5. Pay The Rest Amount
Pay the balance amount as your machine get ready to dispatch.
6. Shipment Initiated
Shipment option available through Manufacturer.
7. Installation
Finally, the product will be installed at your plant.
Rope Washing Range | Fabric Washing Machine | No.1 and Best in segment
The Rope Washing Range is for woven fabrics like cotton, cotton/viscose, cotton/polyester or linen and knitted fabrics.
Product SKU: W/RW-1
Product Brand: Indian
Product Currency: ₹
Product Price: 7500000
Price Valid Until: 2024-01-01
Product In-Stock: PreOrder
5
| Fabric | Cotton, Cotton/Viscose, Cotton/Polyester, Linen, Knit fabric |
|---|---|
| Machine Width | 1500mm, 1600mm, 1800mm, 2000mm, 2200mm, 2400mm, 2600mm, 2800mm, 3000mm, 3200mm, 3400mm |
